Model series PSMK

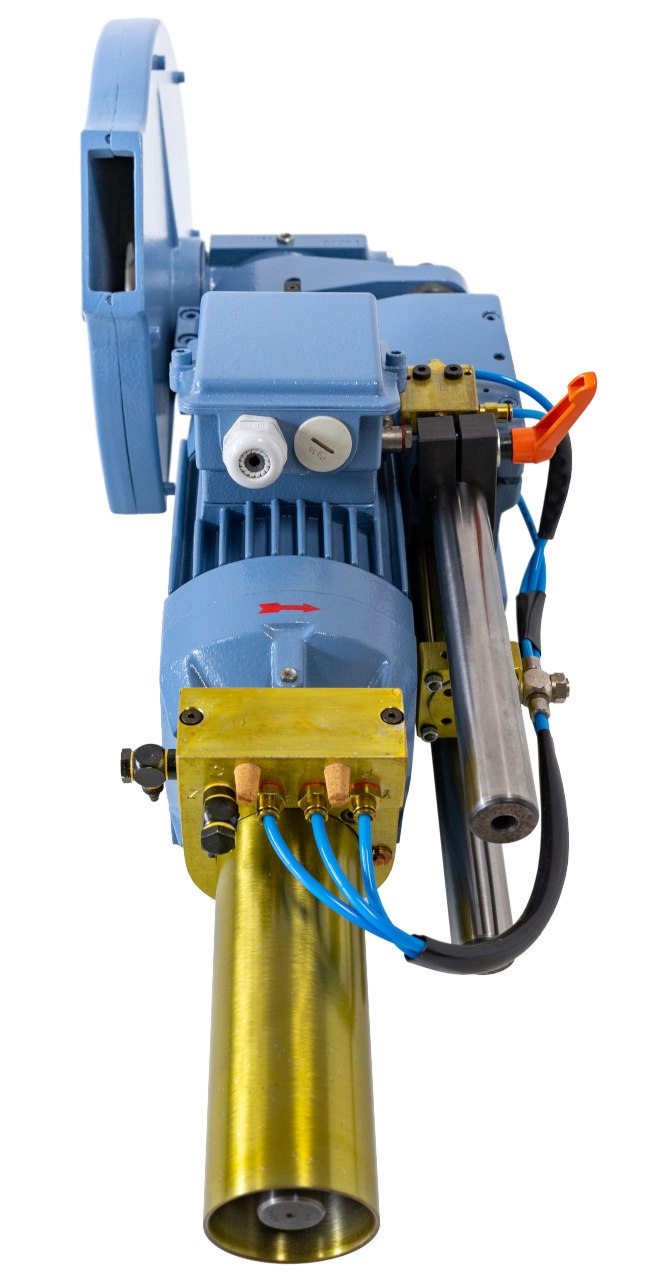

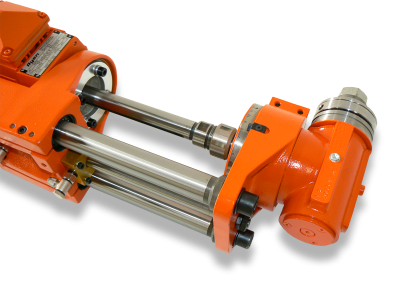

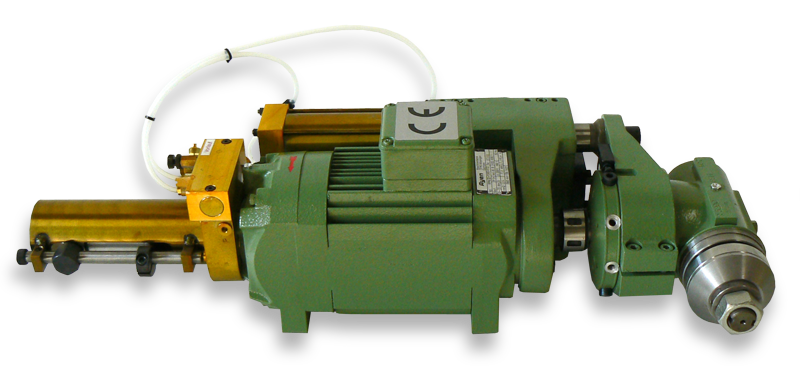

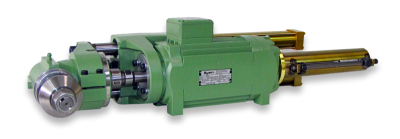

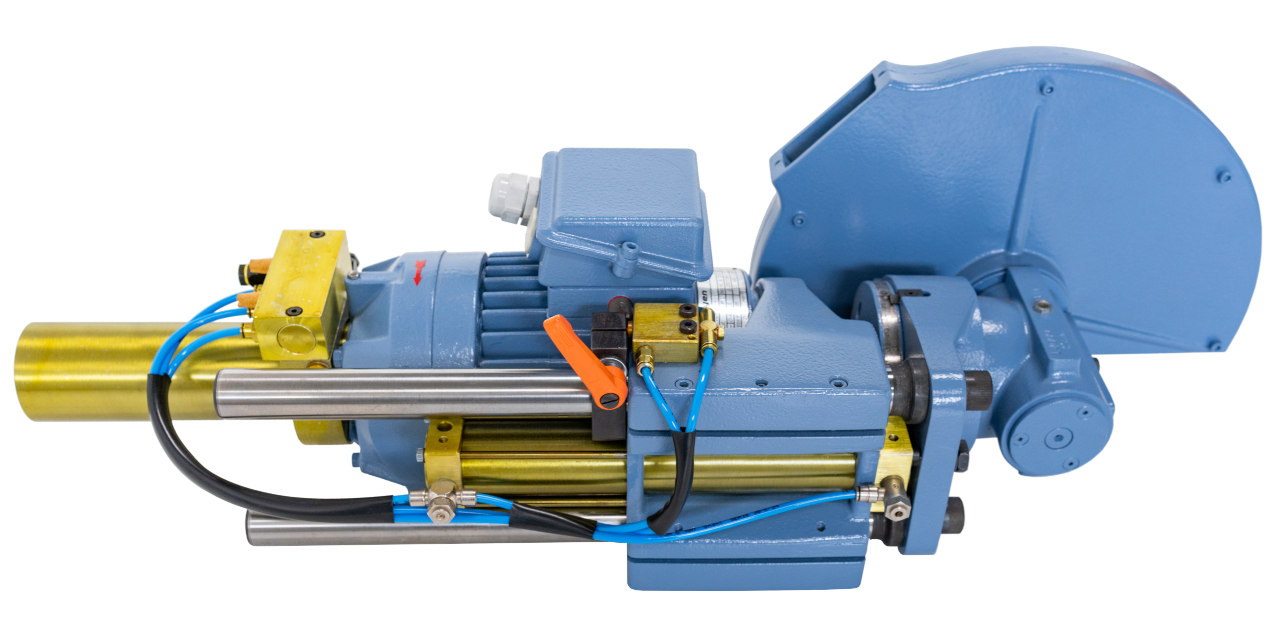

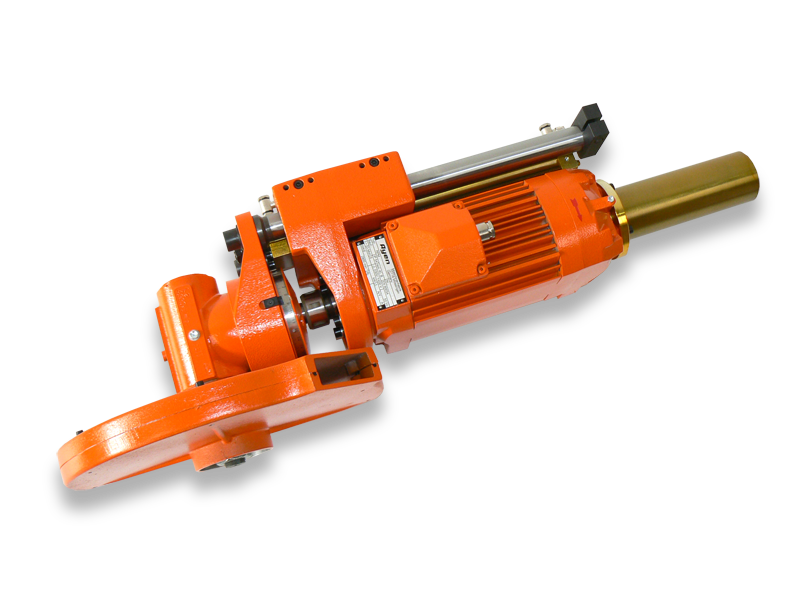

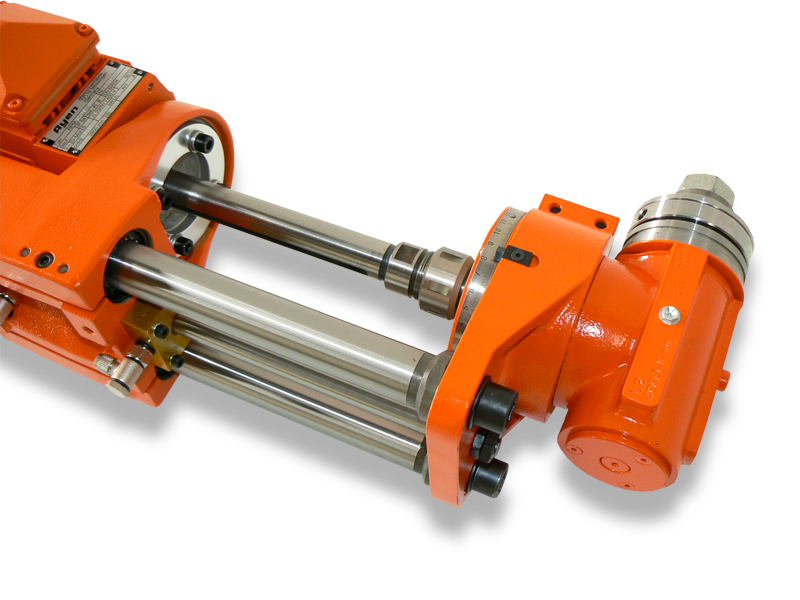

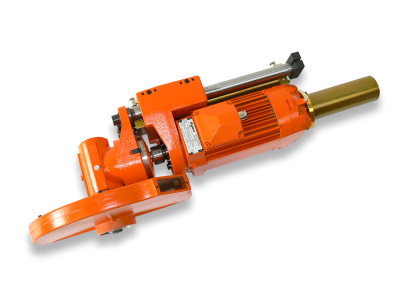

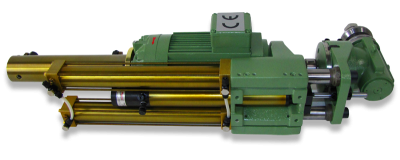

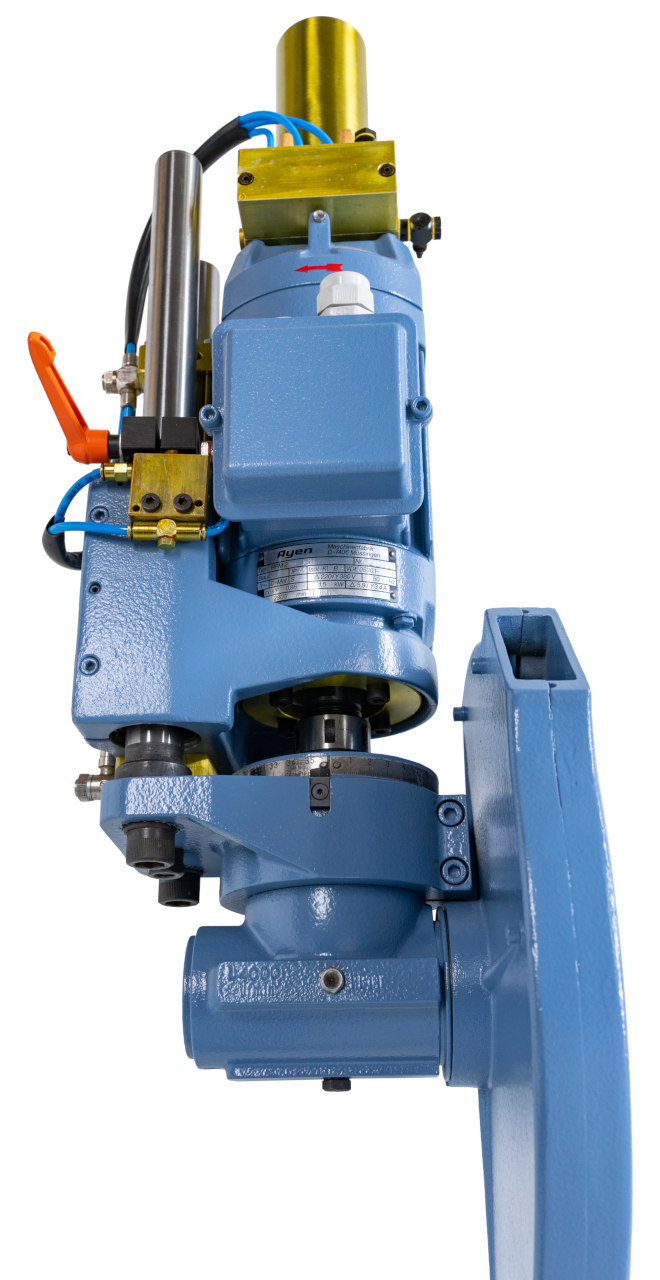

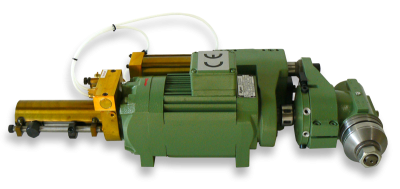

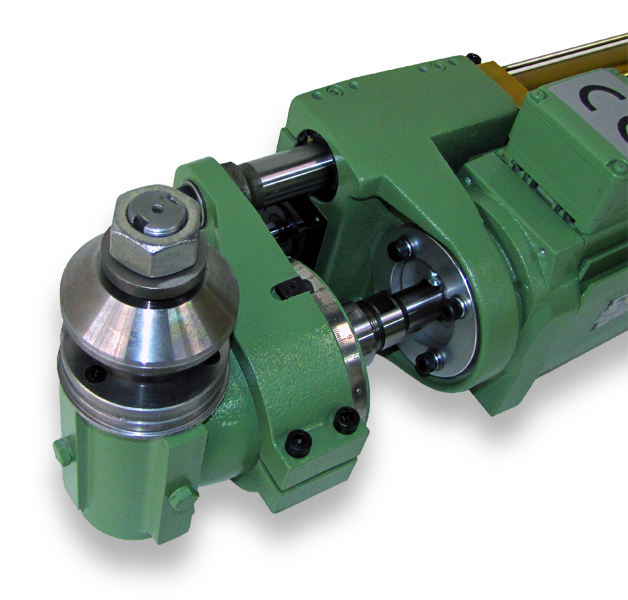

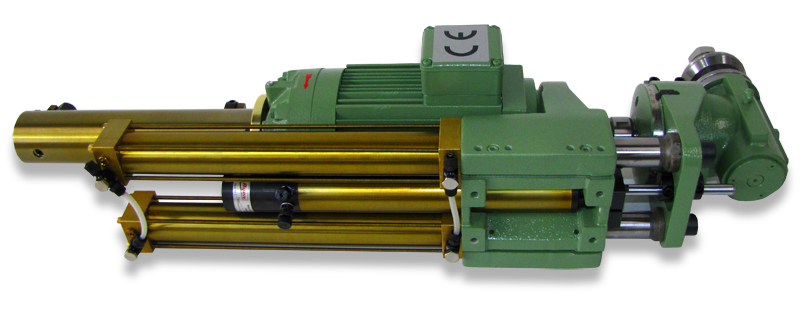

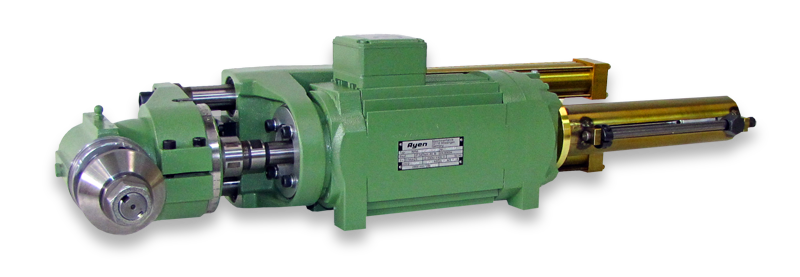

The electro-pneumatic milling and sawing units in short design of the model series PSMK and PSMKH are available for stroke lengths of 100 mm, 200 mm and 300 mm. Their short design is characterized by the pneumatic feed cylinder located between the guiding shafts of the angle head. The units in the PSMKH model series are equipped with an oil brake as standard for working with wood or light metal.

Model series PSMK at a glance:

Electric motor drive
Output spindle speed up to max. 5,200 rpm
Pneumatic (PSMK) or pneumatic-hydraulic (PSMKH) feed located between the guiding shafts of the angle head
Pneumatic or electro-pneumatic control of the feed drive

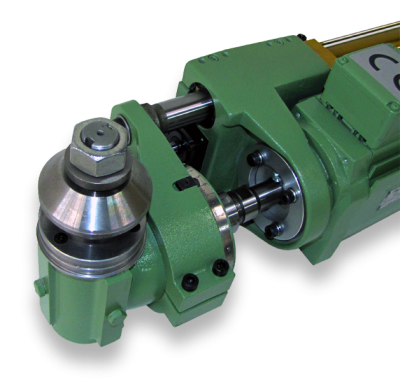

Angular gearbox with:
- tempered spiral bevel gear
- double-shaft guidance
- tempered and honed shaft with ball bushing Ø 30 mm
- +/- 90° rotatable around motor axis
Angular gear head guidance can be mounted on the left or right side of the drive motor

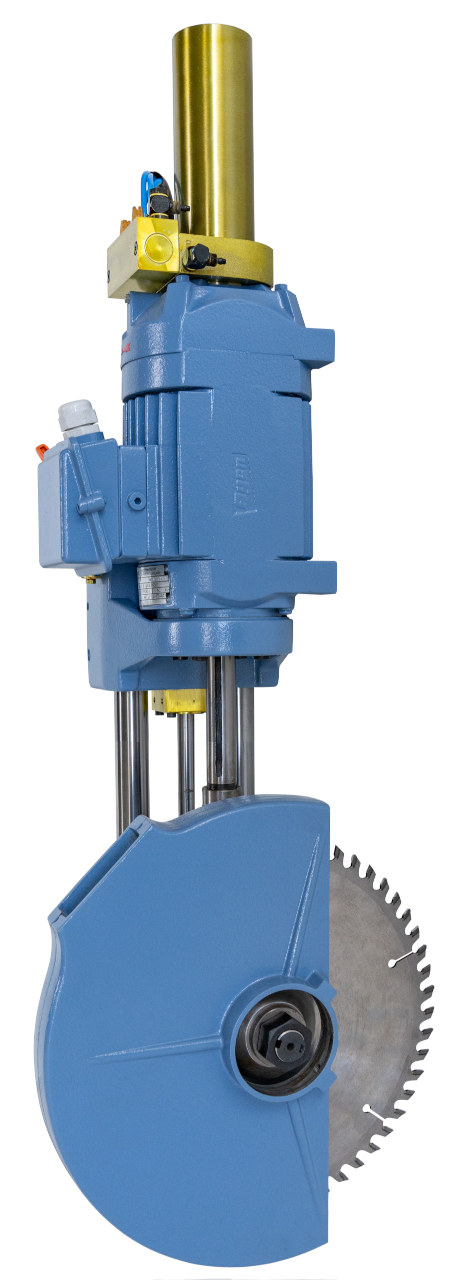

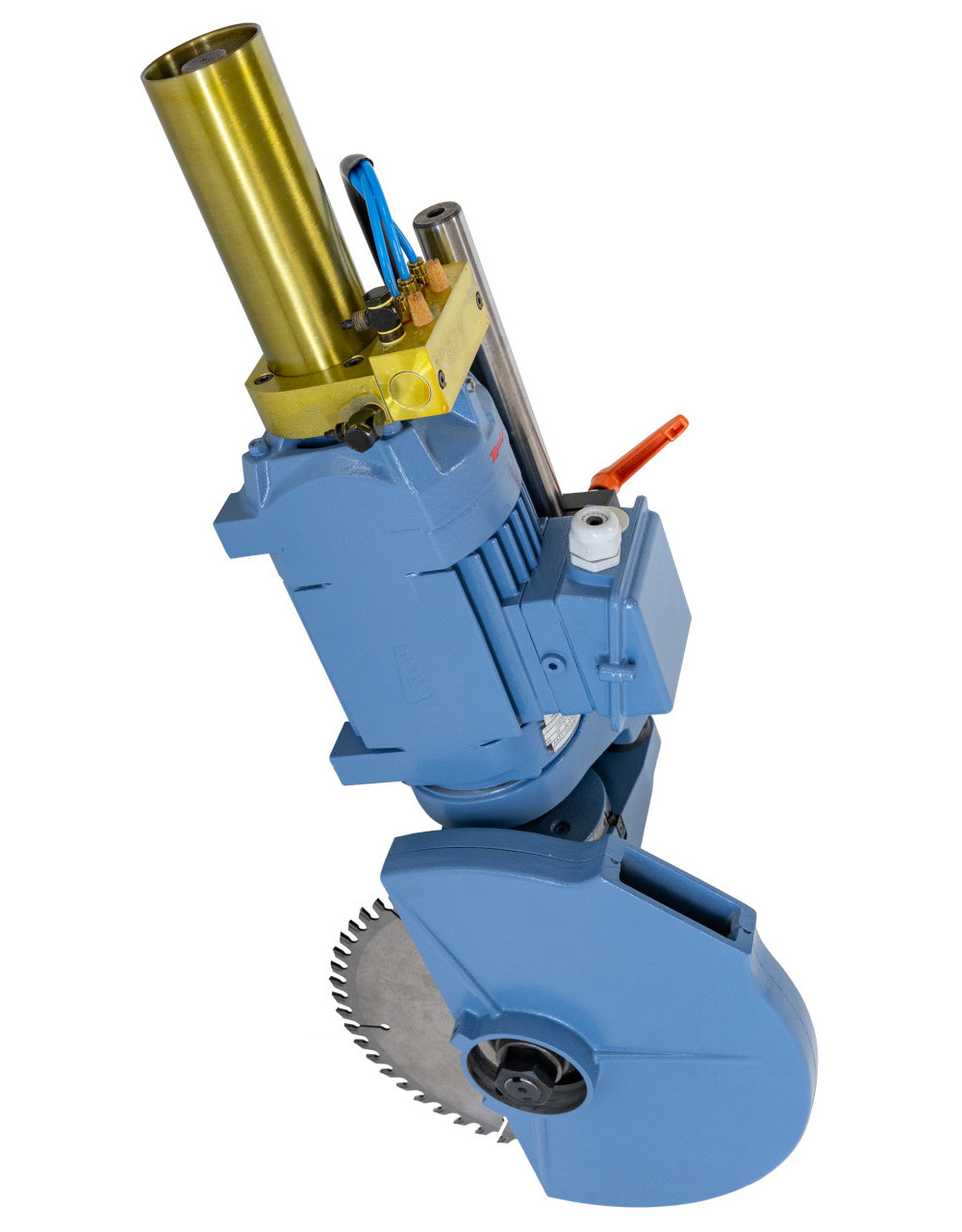

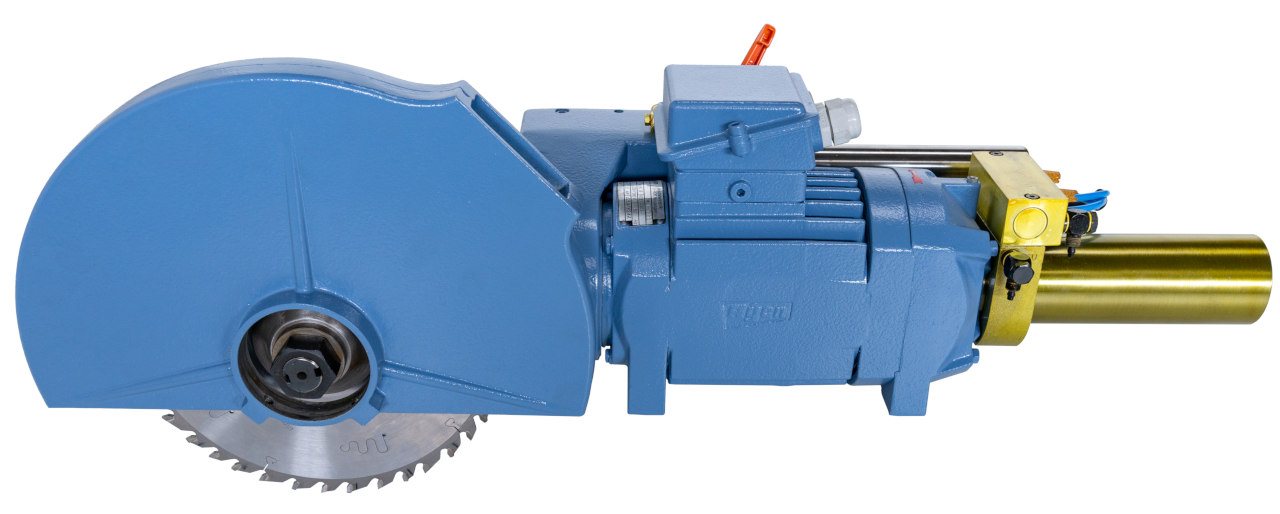

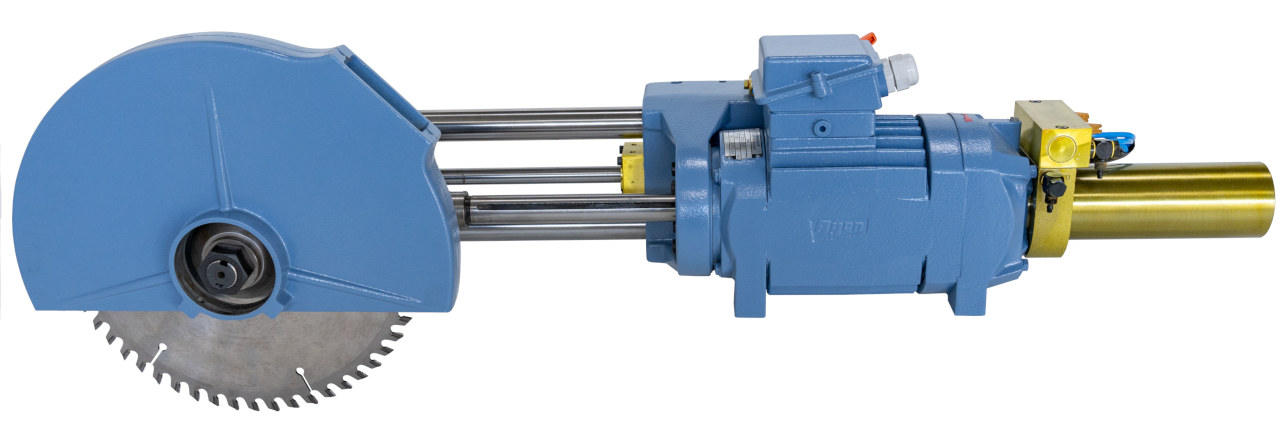

Saw blade guard for max. saw blade diameter of 300 mm

Technical data PSMK:

Output spindle speed max. 5,200 rpm

Type	Power (kW)	Amperage at 230 V / 400 V (A)	Stroke (mm)	Total length (mm)
PSMK1-100	0.75	2.8/1.6	100	695
PSMK1-200	0.75	2.8/1.6	200	795
PSMK2-200	1.5	6.1/3.5	200	825
PSMK2-300	1.5	6.1/3.5	300	925
PSMK3-200	2.2	9/5.2	200	865
PSMK3-300	2.2	9/5.2	300	965

Maßblatt PSMK

The dimensions given in the table and listed in the dimension sheet may differ from the original due to technical changes. We will be happy to provide you with information on current and detailed dimensions.

Technical data PSMKH:

With oil brake and selectable stroke of 70 mm, 140 mm or 200 mm.
Output spindle speed max. 5,200 rpm

Type	Power (kW)	Amperage at 230 V / 400 V (A)	Stroke (mm)	Total length (mm)
PSMKH1-100	0.75	2.8/1.6	100	830
PSMKH1-200	0.75	2.8/1.6	200	930
PSMKH2-200	1.5	6.1/3.5	200	960
PSMKH2-300	1.5	6.1/3.5	300	1.060
PSMKH3-200	2.2	9/5.2	200	1.000
PSMKH3-300	2.2	9/5.2	300	1.100

Maßblatt PSMKH
