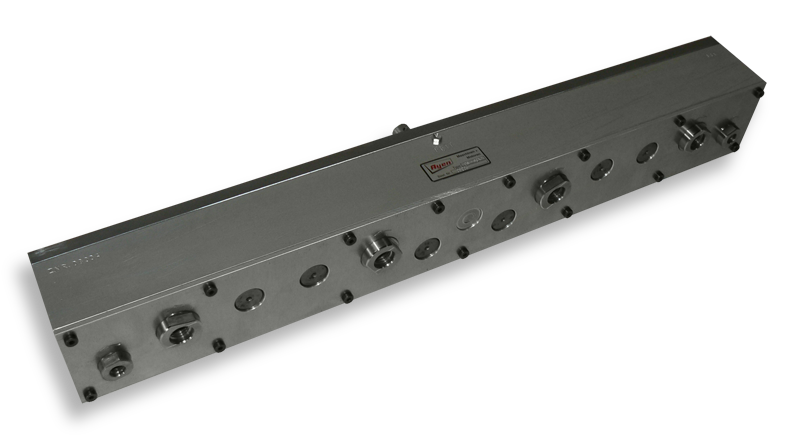

Multi-spindle Drilling Heads
Serial- and Special-purpose Production
Our multi-spindle drilling heads are equipped with the proven Ayen longevity. With good care, maintenance and the use of sharp tools at all times, an Ayen multi-spindle drilling head will remain a long-lasting companion in your workshop. Specialized for woodworking, our drilling heads are also used in machining centers from renowned companies.

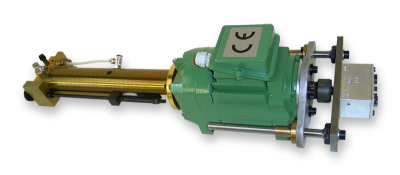

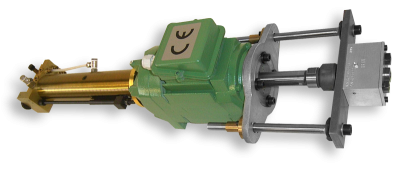

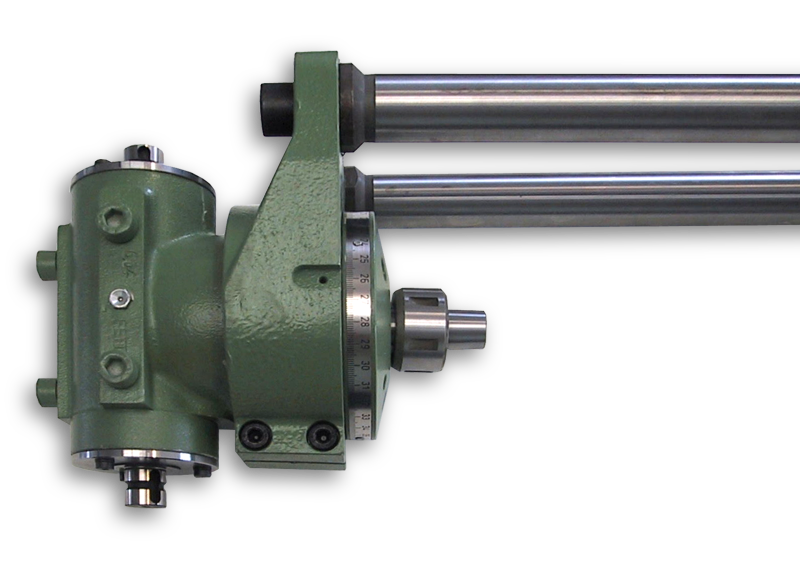

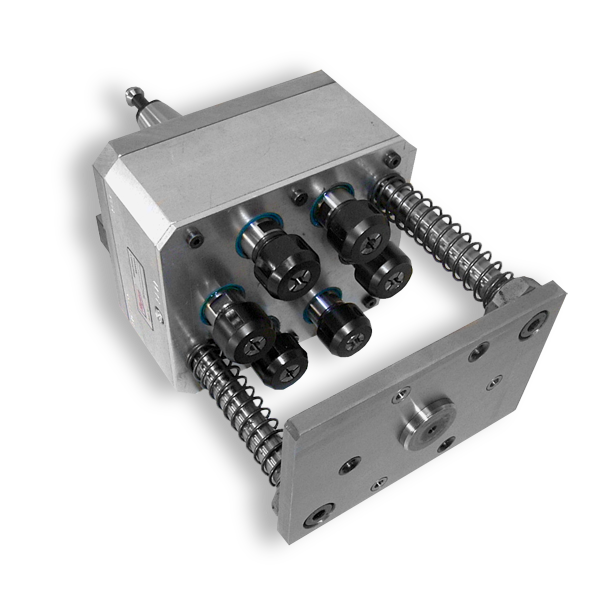

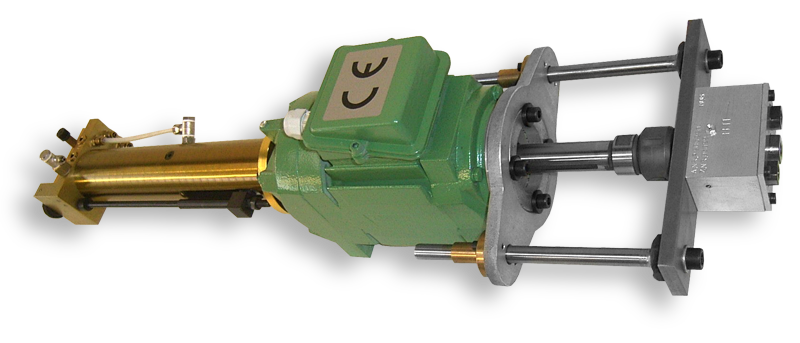

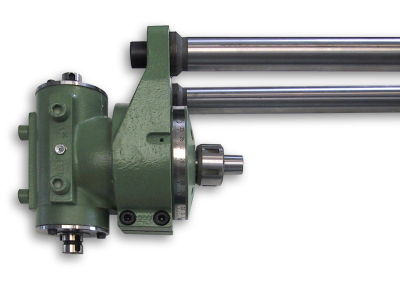

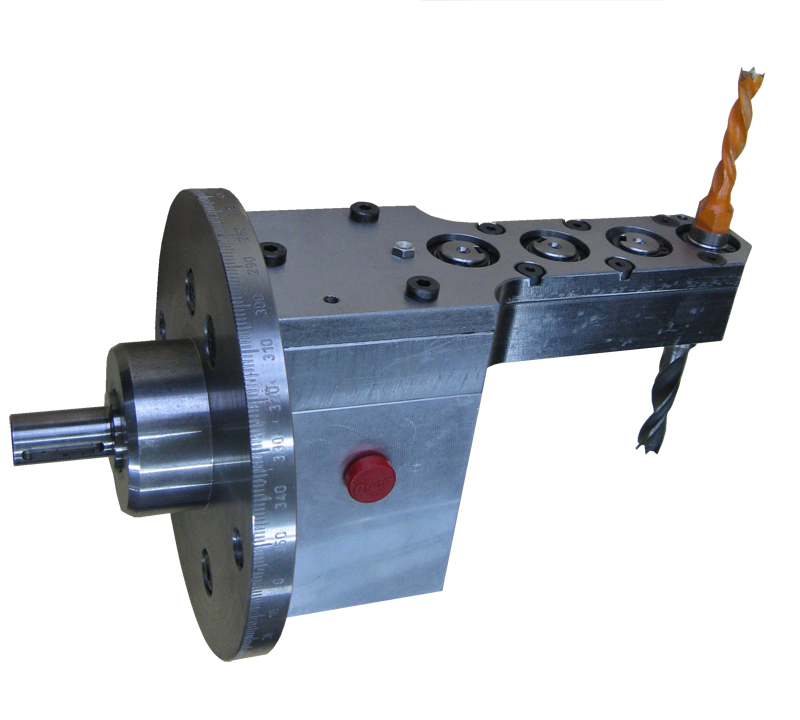

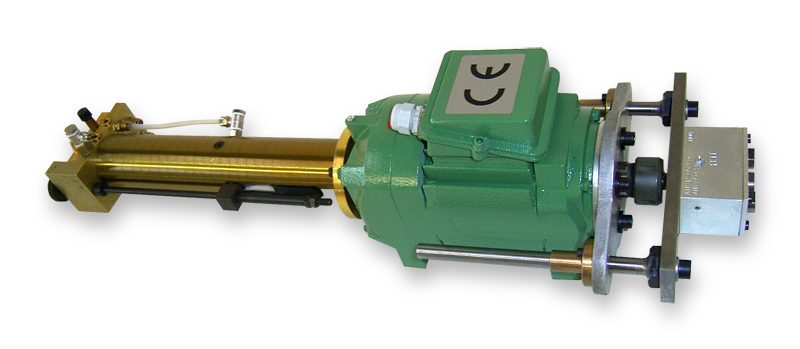

Whether as a standard serial product in a 32 mm grid or equipped with your individual drilling pattern, we can meet any requirement. For example, you can choose fixed or variable spacing, rigid or rotatable designs, with or without guide rods - we offer a wide range of solutions. The drilling heads are either equipped with a cylindrical shaft and can be used in our drilling units, or with a hollow shaft cone for use in a machining center.
Design structure of our multi-spindle drilling heads

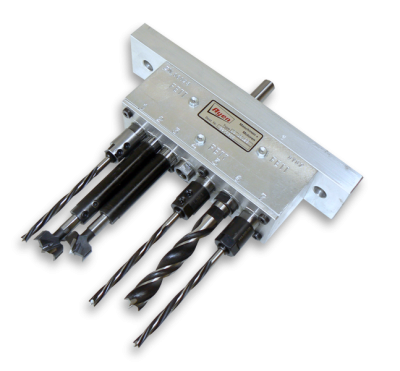

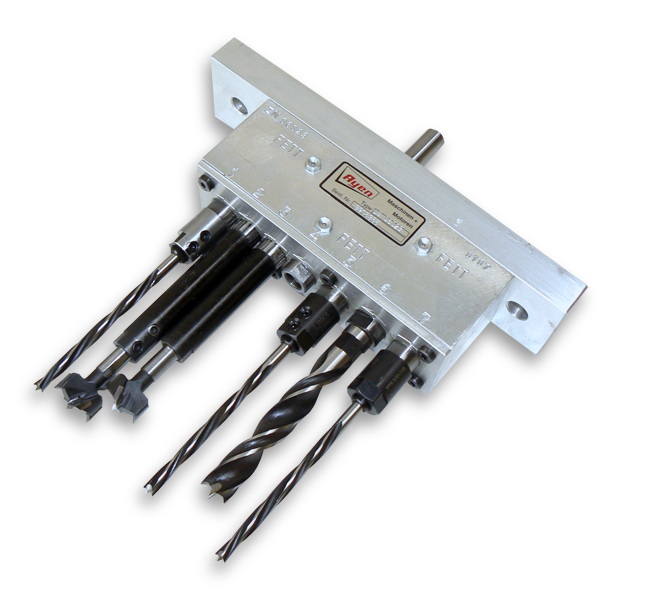

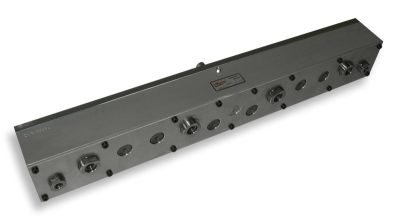

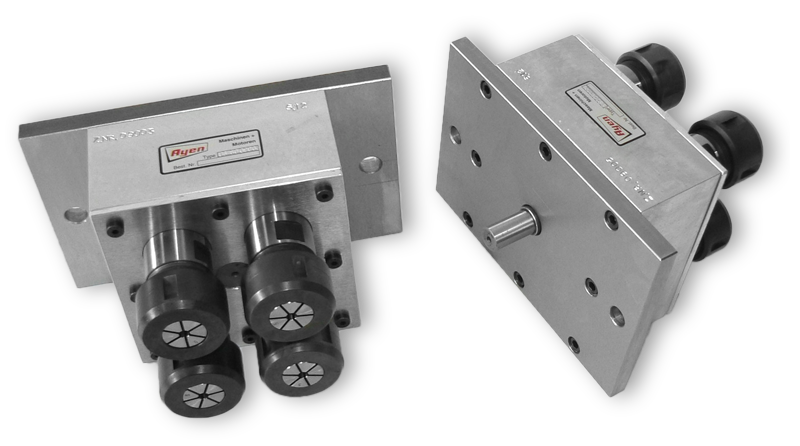

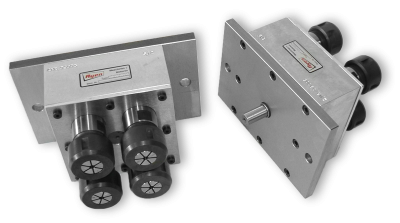

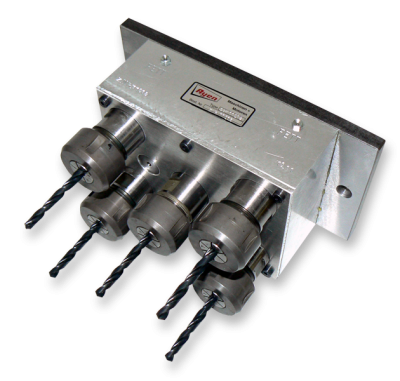

Drilling or milling heads with fixed spacing:
Robust design for high loads
Drilling head housing made of aluminum for optimum heat dissipation and low weight
Tempered, honed spindles
Tempered spockets and gear wheels with ground tooth flanks
Bearing-mounted drilling spindles
Easy to maintain thanks to spare parts supply

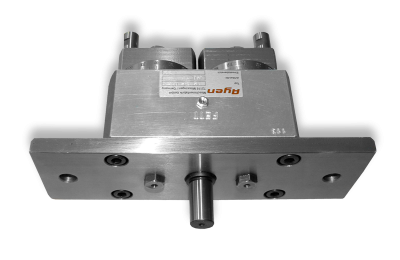

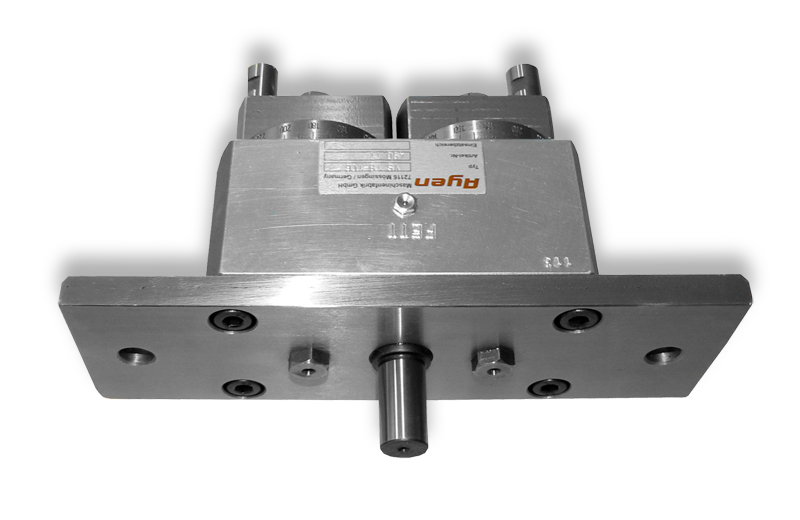

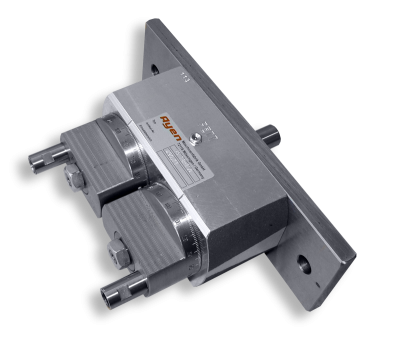

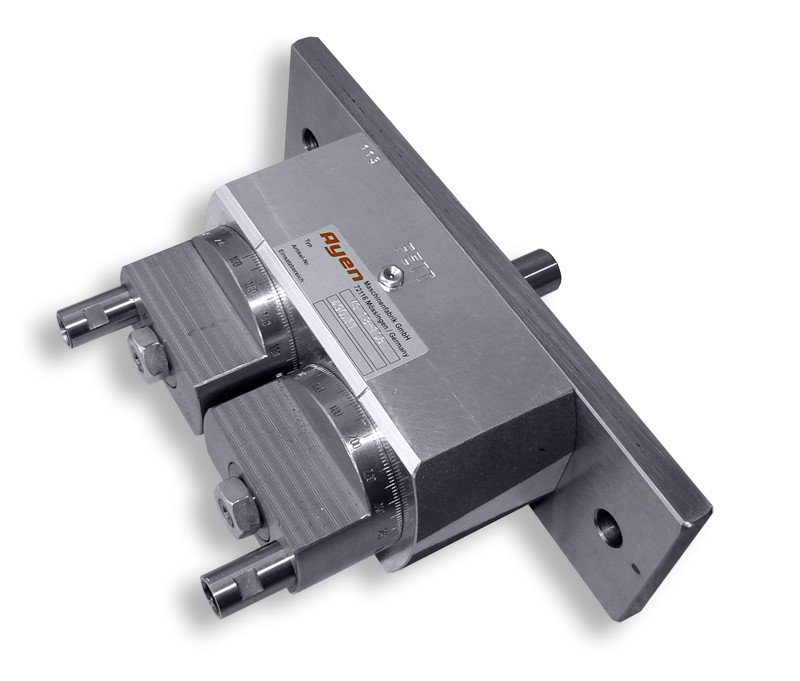

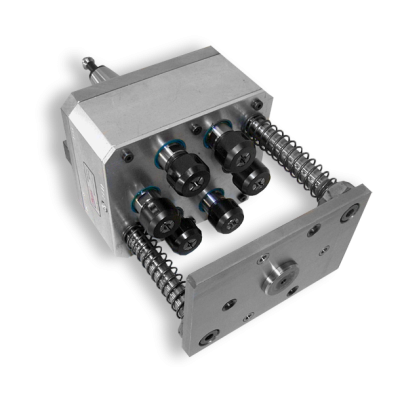

Drilling or milling heads with adjustable spacing:
Design structure basically like drilling or milling heads with fixed distances, but with quickly individually adjustable distances.
