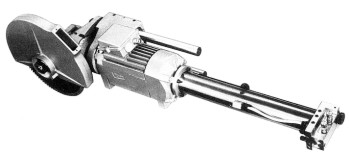

Model series PSM

The electro-pneumatic milling and sawing units of the PSM and PSMH model series are available in various versions. Their standard design is characterized by the pneumatic feed cylinder connected in series with the motor spindle. The units in the PSMH series are equipped with an oil brake as standard for processing wood or light metal.

Model series PSM at a glance:

Electric motor drive
Output spindle speed up to max. 5,200 rpm
Pneumatic (PSM) or pneumatic-hydraulic (PSMH) feed movement
Feed speed infinitely variable by exhaust air throttling (PSM) of the feed cylinder or by an oil brake (PSMH)
Pneumatic or electro-pneumatic control of the feed drive

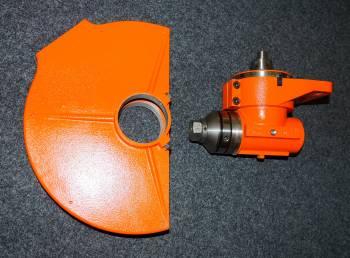

Angular gearbox with:
- tempered spiral bevel gear
- double-shaft guidance
- tempered and honed shaft with ball bushing Ø 30 mm
- +/- 90° rotatable around motor axis
Angular gear head guidance can be mounted on the left or right side of the drive motor
Saw blade guard for max. saw blade diameter of 300 mm

Technical data PSM:

Without oil brake
Output spindle speed max. 5,200 rpm

Type	Power (kW)	Amperage at 230 V / 400 V (A)	Stroke (mm)	Total length (mm)
PSM1-100	0.75	2.8 / 1.6	98	985
PSM2-150	1.5	6.1 / 3.5	150	1120
PSM2-200	1.5	6.1 / 3.5	200	1220
PSM3-150	2.2	9 / 5.2	150	1160
PSM3-200	2.2	9 / 5.2	200	1260

Maßblatt PSM

The dimensions given in the table and listed in the dimension sheet may differ from the original due to technical changes. We will be happy to provide you with information on current and detailed dimensions.

Technical data PSMH:

With oil brake and selectable stroke of 70 mm, 140 mm or 200 mm.
Output spindle speed max. 5,200 rpm

Type	Power (kW)	Amperage at 230 V / 400 V (A)	Stroke (mm)	Total length (mm)
PSMH1-100	0.75	2.8 / 1.6	98	965
PSMH2-150	1.5	6.1 / 3.5	150	1115
PSMH2-200	1.5	6.1 / 3.5	200	1198
PSMH3-150	2.2	9 / 5.2	150	1155
PSMH3-200	2.2	9 / 5.2	200	1238

Maßblatt PSMH
