Knot-hole Drilling Machine - ABMH66

ABMH66 at a Glance:

For drilling knotholes
Robust and fuctional construction
660 mm projection
120 mm height adjustment of the drilling unit
With hand lever of pneumatic feed
For wall installation or with machine frame
Individually configurable thanks to extensive accessories
Versatile drill head selection

Our Knot-hole Drilling Machine ABMH66 is ideal for interior work companies. It is universally applicable and has the robust and well thought-out design typical of Ayen.

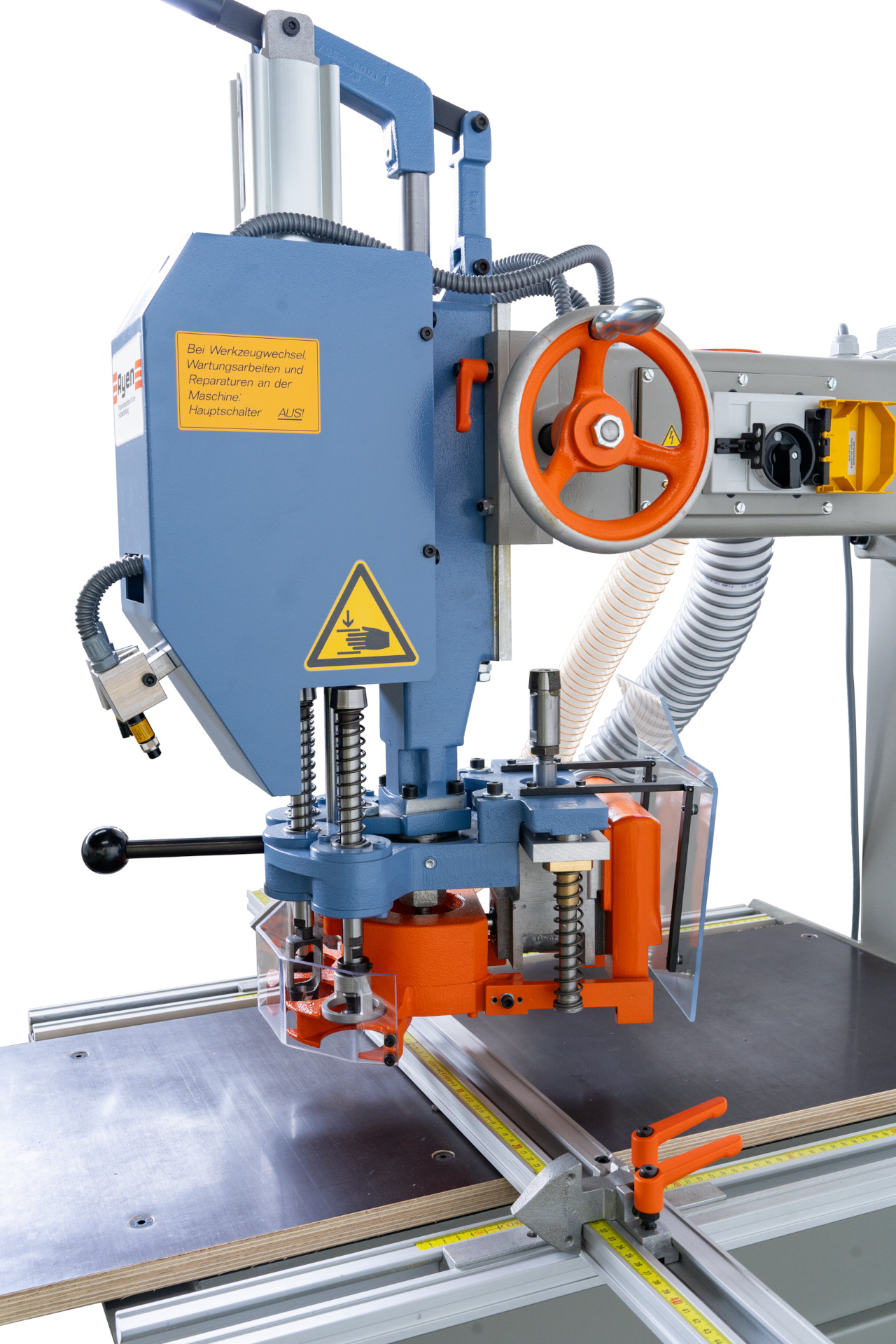

With the standard 4-fold drill spindle swivel head, you can attach 4 different drills, eliminating time-consuming tool changes. A pitch pocket milling head, window handle drilling head, row of holes drilling head or other special drilling heads can be installed via a mounting plate to extend your range of applications.

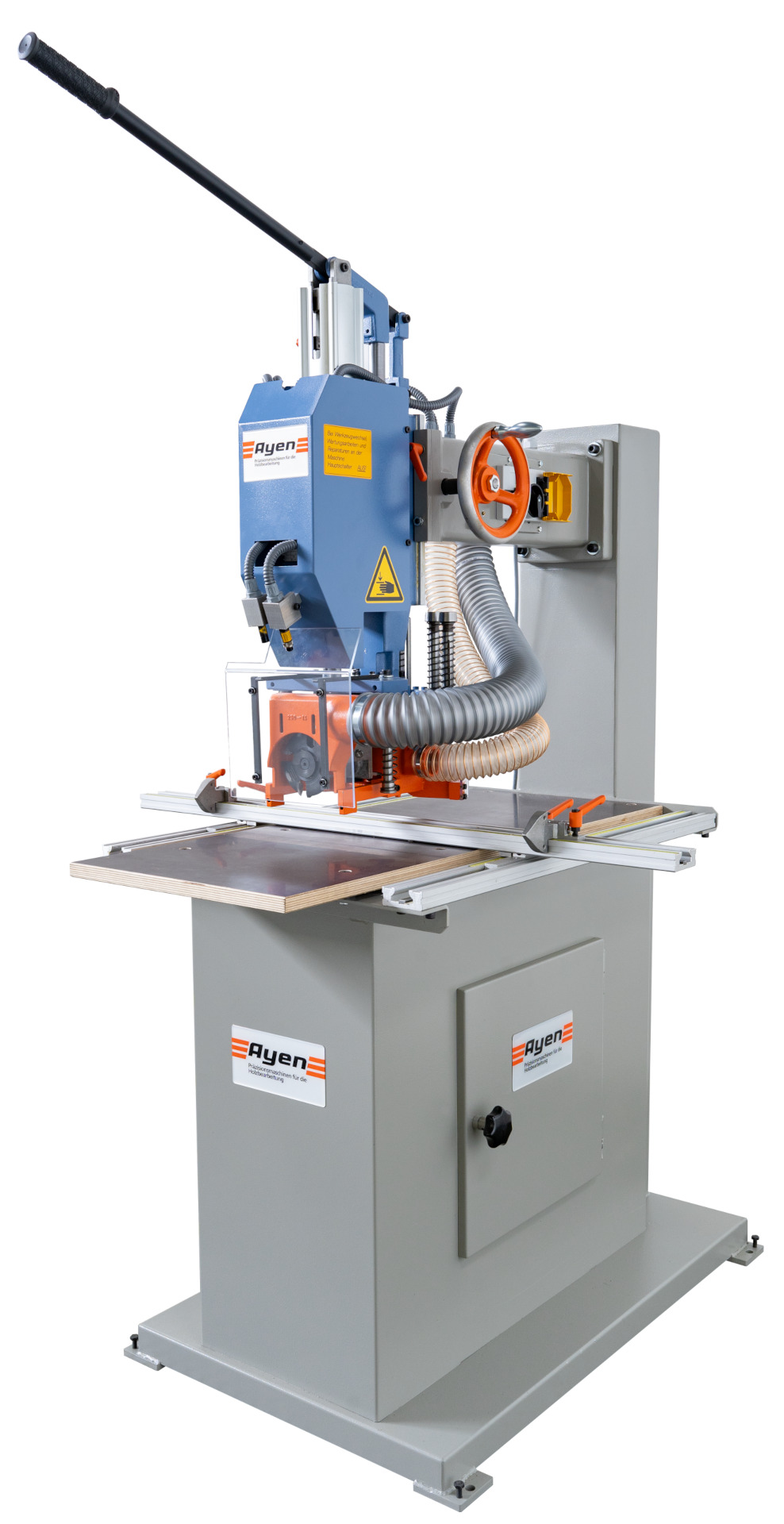

ABMH66 can be wall-mounted in your workshop or delivered with a machine frame. In addition to the standard hand lever operation, the knot-hole drilling machine is also available as ABMP66 with pneumatic feed. The height of the drilling unit can be adjusted within a 120 mm range using a handwheel.

Whatever your area of application is, we are sure to find the right ABMH variant for you...

Have a look at the product pages of our boom machines ABMH66-B for pure drilling, pure milling (ABHM66-F), our ABMH66-DG swivel joint version for wall-mounting or the ABMP66-L special version for pitch pocket milling.
